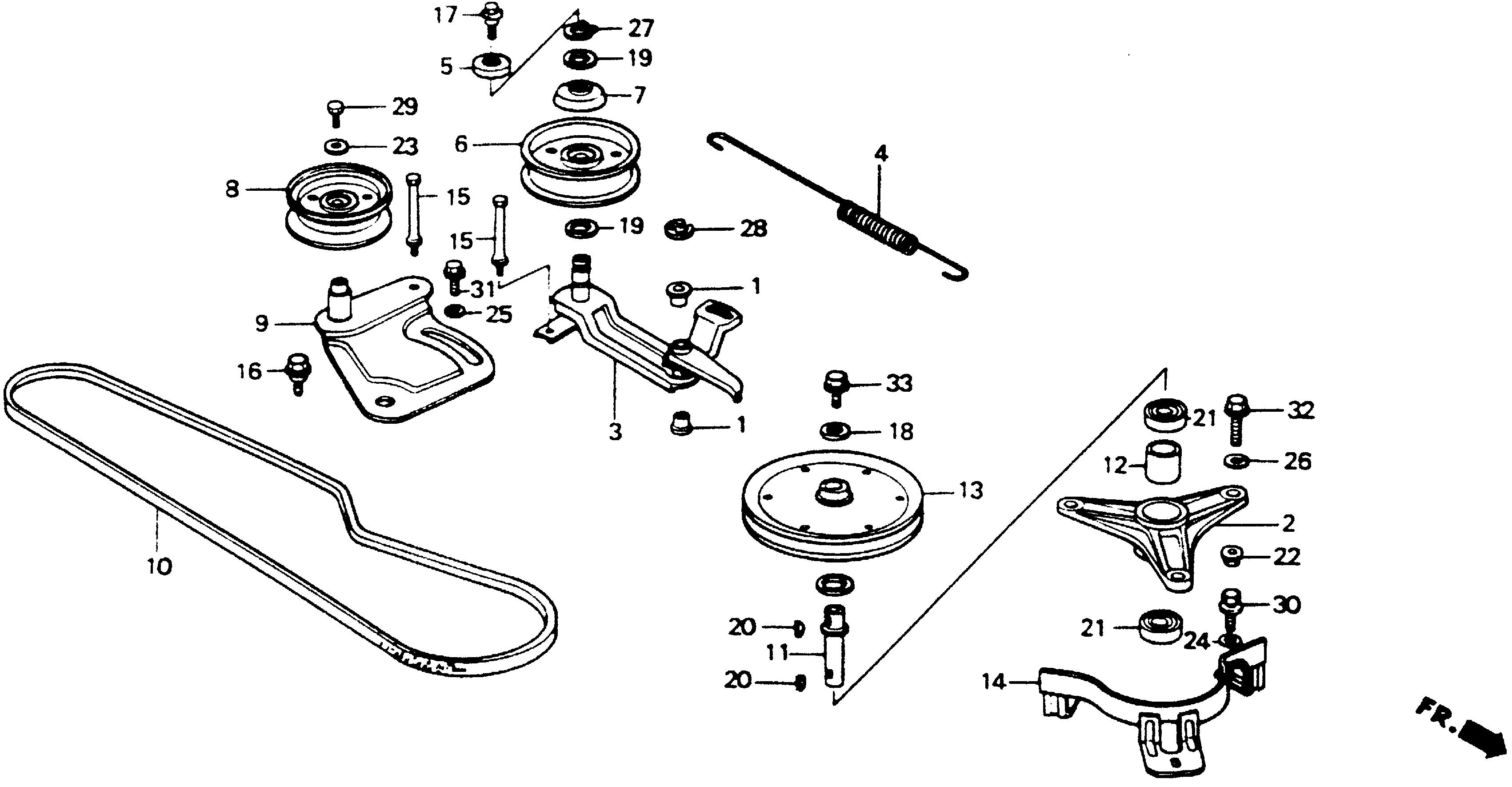

Riding Mower HT-R HT-R3009 HT-R3009 SA MA1T-5000001-5100000 HT-R3009CUTTER PULLEY - Honda Generators of Tampa

Ref No
Part Number
Description
Serial Range
Qty
Price

Ref No
1
Part Number
24132-750-000
Description
BUSH (15X19X22)
Serial Range
1000001 - 9999999
Qty
Price
$8.48

Ref No
2
Part Number
72711-751-010
Description
HOUSING, BEARING (NOT AVAILABLE)
Serial Range
1000001 - 9999999

Ref No
3
Part Number
76120-751-020
Description
ARM, TENSION (DECK) (NOT AVAILABLE)
Serial Range
1000001 - 9999999
Qty
Price
$57.82

Ref No
4
Part Number
76122-751-000
Description
SPRING, TENSIONER ARM
Serial Range
1000001 - 9999999
Qty
Price
$21.24

Ref No
5
Part Number
76126-751-000
Description
GRIP, TENSION ARM
Serial Range
1000001 - 9999999
Qty
Price
$5.94

Ref No
6
Part Number
76130-751-000
Description
ROLLER, TENSIONER (NOT AVAILABLE)
Serial Range
1000001 - 9999999
Qty
Price
$48.88

Ref No
7
Part Number
76135-751-000
Description
DUST COVER, TENSION PULLEY (NOT AVAILABLE)
Serial Range
1000001 - 9999999
Qty
Price
$4.00

Ref No
8
Part Number
76160-751-000
Description
PULLEY, TENSIONER
Serial Range
1000001 - 9999999
Qty
Price
$44.68

Ref No
9
Part Number
76180-751-000
Description
ARM, BELT ADJUSTING (NOT AVAILABLE)
Serial Range
1000001 - 9999999
Qty
Price
$34.44

Ref No
10
Part Number
76181-751-003
Description
V-BELT, BLADE (SB-70)
Serial Range
1000001 - 9999999
Qty
Price
$48.64

Ref No
11
Part Number
76212-751-000
Description
SHAFT, BLADE (NOT AVAILABLE)
Serial Range
1000001 - 9999999
Qty
Price
$58.46

Ref No
12
Part Number
76213-751-000
Description
COLLAR, BLADE SHAFT (NOT AVAILABLE)
Serial Range
1000001 - 9999999
Qty
Price
$6.40

Ref No
13
Part Number
76221-751-000
Description
PULLEY, CUTTER DECK (NOT AVAILABLE)
Serial Range
1000001 - 9999999
Qty
Price
$55.48

Ref No
14
Part Number
76251-751-000
Description
COVER, DECK PULLEY (NOT AVAILABLE)
Serial Range
1000001 - 9999999

Ref No
15
Part Number
90109-751-000
Description
BOLT, BELT STOPPER
Serial Range
1000001 - 9999999
Qty
Price
$4.20

Ref No
16
Part Number
90110-751-000
Description
BOLT, ADJUSTING ARM
Serial Range
1000001 - 9999999
Qty
Price
$4.02

Ref No
17
Part Number
90111-KE1-000
Description
BOLT, FLANGE (6MM) (NOT AVAILABLE)
Serial Range
1000001 - 9999999
Qty
Price
$3.00

Ref No
18
Part Number
90401-371-000
Description
WASHER (12.2X33X3.2)
Serial Range
1000001 - 9999999
Qty
Price
$5.78

Ref No
19
Part Number
90503-751-000
Description
WASHER (17.3X25)
Serial Range
1000001 - 9999999
Qty
Price
$2.98

Ref No
20
Part Number
90751-750-000
Description
KEY, SPECIAL WOODRUFF (16X15) (NOT AVAILABLE)
Serial Range
1000001 - 9999999
Qty
Price
$5.44

Ref No
21
Part Number
91001-751-003
Description
BEARING, RADIAL BALL (62/22) (2RS)
Serial Range
1000001 - 9999999
Qty
Price
$25.54

Ref No
22
Part Number
94050-10080
Description
NUT, FLANGE (10MM)
Serial Range
1000001 - 9999999
Qty
Price
$1.94

Ref No
23
Part Number
94103-06000
Description
WASHER, PLAIN (6MM)
Serial Range
1000001 - 9999999
Qty
Price
$0.94

Ref No
24
Part Number
94103-06700
Description
WASHER, PLAIN (6MM)
Serial Range
1000001 - 9999999
Qty
Price
$0.68

Ref No
25
Part Number
94103-08000
Description
WASHER, PLAIN (8MM)
Serial Range
1000001 - 9999999
Qty
Price
$0.60

Ref No
26
Part Number
94111-10800
Description
WASHER, SPRING (10MM)
Serial Range
1000001 - 9999999
Qty
Price
$1.14

Ref No
27
Part Number
94511-17000
Description
CIRCLIP (OUTER) (17MM)
Serial Range
1000001 - 9999999
Qty
Price
$0.80

Ref No
28
Part Number
94540-12018
Description
E-RING (12MM)
Serial Range
1000001 - 9999999
Qty
Price
$4.66

Ref No
29
Part Number
95701-06012-00
Description
BOLT, FLANGE (6X12)
Serial Range
1000001 - 9999999
Qty
Price
$1.58

Ref No
30
Part Number
95701-06016-07
Description
BOLT, FLANGE (6X16)
Serial Range
1000001 - 9999999
Qty
Price
$1.58

Ref No
31
Part Number
95700-08016-00
Description
BOLT, FLANGE (8X16)
Serial Range
1000001 - 9999999
Qty
Price
$1.66

Ref No
31
Part Number
95701-08016-00
Description
BOLT, FLANGE (8X16)
Serial Range
1000001 - 9999999
Qty
Price
$1.74

Ref No
32
Part Number
95701-10035-08
Description
BOLT, FLANGE (10X35)
Serial Range
1000001 - 9999999
Qty
Price
$3.80

Ref No
33
Part Number
95701-12025-08
Description
BOLT, FLANGE (12X25)
Serial Range
1000001 - 9999999
Qty
Price
$3.52
